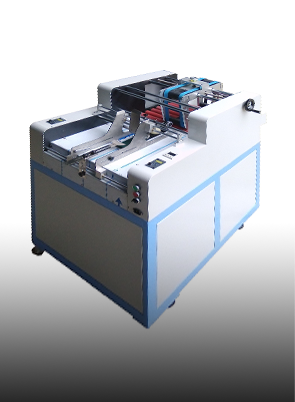

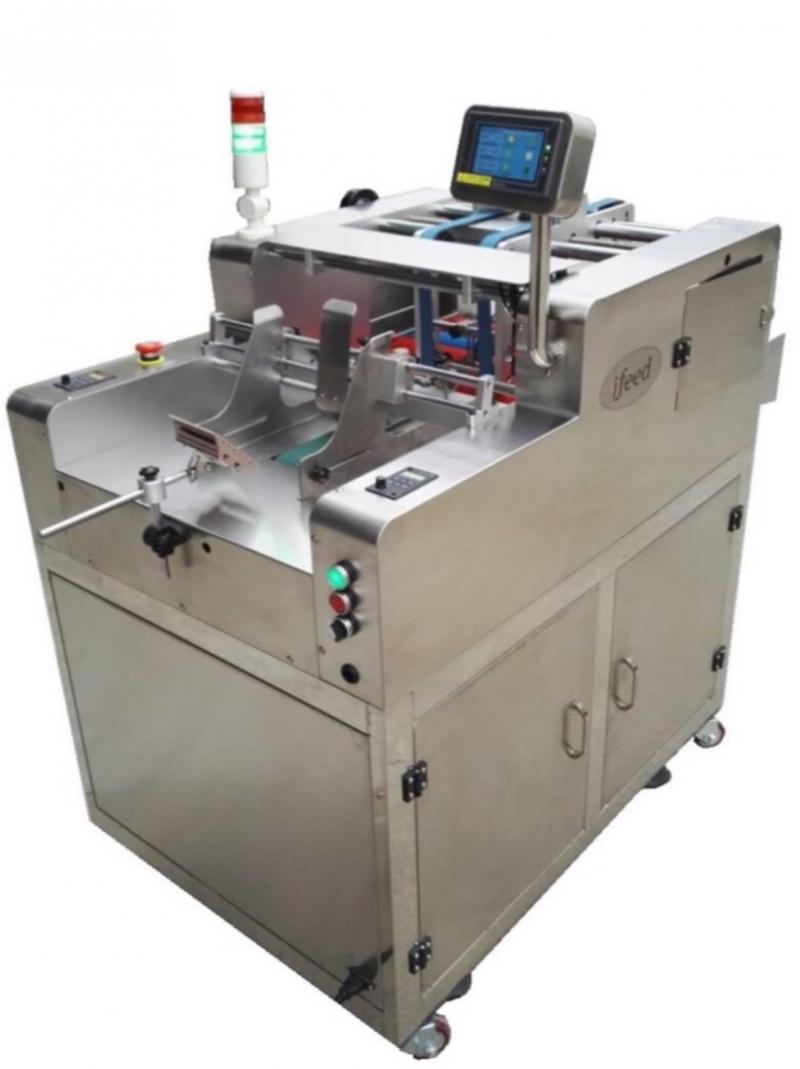

A special designed Friction Feeder System for Thermal Transfer printer (TTO) with Double Detection function. The unique separator device is design to feed various type of materials such as laminated pouches, poly bags, cards, folded carton/box. The Double Detection function will prevent mulitple feeding of materials to avoid damage to the TTO printhead. PLC control with touch screen panel for easy setting of count quantity, count Up/Down, print delay, stop delay, double detection. Feeding and printing speed is measured by an encoder to obtain a constant print width when adjusting for different speed. The magazine hopper is capable of loading up to over 10kg of materials without separation problem. Quick and easy change over to different materials and sizes without tools.

Specification
Material size : Width 80 – 400mm, Length 100 – 400mm
Materials thickness : 0.10 – 5mm
Magazine load : Over 10kg
Printing speed : Up to 60m per minute
Voltage : 110/240V, 50/60Hz 1Ph
Motor power : 90W x 2
Control : PLC
Display : Touch Screen
Dimension : 1000L x 700W x 1150H mm
Weight : 180kg , Gross 250kg
TTO printer : Allen Coding, Diagraph, VideoJet, Domino, Linx, Marken-Imaje, Kortho, Open Date, Easyprint.
TTO type : Continuous
TTO width : Up to 200mm
