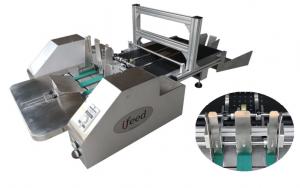

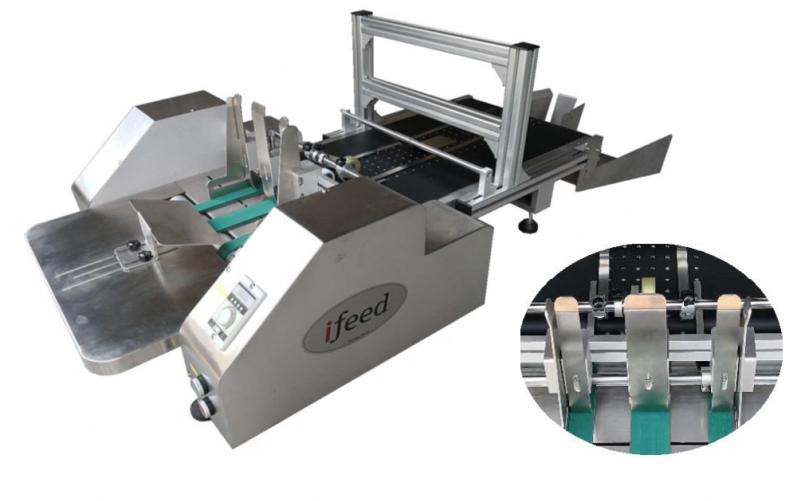

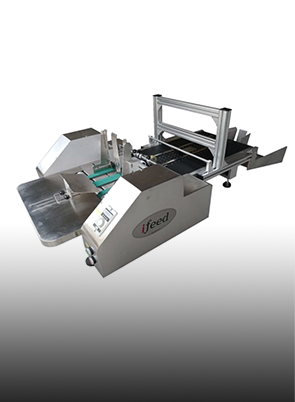

iFeed friction feeder model TF02-400, a table top hi-speed friction feeder with 3 feed belts and integrated with a 650mm long vacuum conveyor capable of speed up to 100m per minute and ‘No Materials Auto Stop’ function. The feeder is designed to feed and separate all types of plastic materials such as PE, PP, PET, PVC, Nylon, Laminated Aluminum bag as well as other different materials. The feed magazine will take up to a stack height of over 200mm with weight load of over 10kg and can accept material thickness from 0.1 – 10mm. The design of the feeder conveyor allows the attachments of CIJ Ink Jet printer, Thermal Ink Jet, Piezo Ink Jet, Labelling machine, Barcode reader, Vision Inspection and other types of equipment at speed up to 100m per minute. Various types of options are available such as product counters, double detection, automatic collection conveyor and reject system. The design allows for fast and easy changeover of sizes
without tools.

Specification
Product dimension : Width 60 – 400 mm , Length 80 – 400 mm
Product thickness : 0.10 – 10 mm
Conveyor speed : Adjustable up to 100m per minute
Voltage : 110V/240V , 50/60Hz , 1Ph.
Motor : 90W-120W
Dimension : 1200 x 700 x 400mm
Weight : Approx. 60kg
